Your Professional Waste Plastic Recycling Solution Supplier
Jwell, a vice president unit of the China Plastics Machinery Industry Association, is a leading manufacturer specializing in plastic extrusion equipment and complete sets of chemical fiber spinning machinery. The company's main product lines include: various types of cast film, sheet, and board production lines; different kinds of plastic pipe and profile production lines; blowing molding machines; chemical fiber spinning equipment; as well as plastic recycling and compounding granulation systems. Additionally, Jwell supplies key accessories such as screw barrels, extrusion flat die heads, screen changers, and rollers.
Strong Manufacturing Capabilities
The company comprises 26 specialized subsidiaries, nine large-scale metal processing plants, and three heat treatment and nitriding facilities.
Independent Intellectual Property Rights
Jwell has established an independent intellectual property system and holds nearly 400 authorized patents.
Professional and Experienced Team
Our dedicated team collaborates with clients to identify personnel, resources, and process documentation necessary to support maintenance operations effectively.
High Production Capacity and Global Reach
Jwell produces approximately 3,000 sets of extrusion lines annually, which are exported to over 120 countries worldwide.
Parameter
|
Model |
Screw Diameter |
L/D |
Screw Speed |
Main Motor Power |
Output |
|
JWL65 |
65mm |
25-35 |
20-100rpm |
30-37kw |
80-150kg/h |
|
JWL90 |
90mm |
25-35 |
20-90rpm |
45-55kw |
200-250kg/h |
|
JWL120 |
120mm |
25-35 |
20-75rpm |
75-110kw |
280-350kg/h |
|
JWL150 |
150mm |
25-35 |
20-75rpm |
110-160kw |
380-500kg/h |
|
JWL160 |
160 |
25-35 |
20-70rpm |
132-185kw |
500-650kg/h |
|
JWL180 |
180 |
25-35 |
20-70rpm |
200-250kw |
650-800kg/h |
|
JWL200 |
200 |
25-35 |
20-60rpm |
250-315kw |
800-1300kg/h |
|
JWL250 |
250 |
25-35 |
20-60rpm |
315-500kw |
1200-1800kg/h |
Video
Waste Plastic Recycling Solution
The waste plastic recycling solutions produced by our company mainly include the following types:

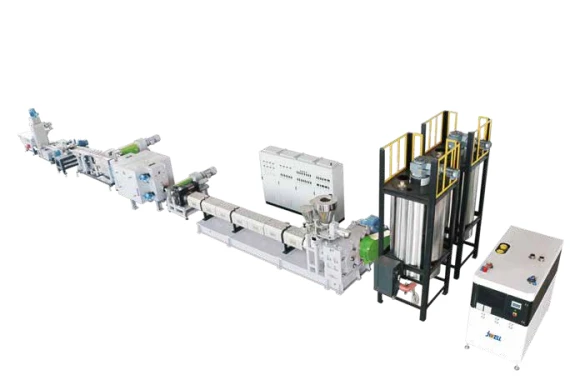

High Quality Yarn Spinning Grade Pet Recycling Line
High quality yarn spinning grade pet recycling line is mainly used to make the high-standard spinning grade PET granules. This machine can control the B value and L value easily and reduce the viscosity to the minimum data.
Pet Flakes Machine
The process of recycling PET bottle flakes has strict requirements on the viscosity and color of the particles. After years of hard work and continuous accumulation, the company has developed two types of products for this market for customers to choose from.
PET Bottle Washing Line
Wasted PET bottles are an important unit in the plastic recycling raw material market. The recycled PET bottles are screened, crushed, and washed into PET bottle flakes, which can be recycled to produce PET, Chemical fiber products and packaging materials.
Advantages of Waste Plastic Recycling Solution
Cost Savings on Raw Materials
One of the most significant benefits of using a plastic recycling machine is the reduction in raw material costs. Plastic granules and virgin polymer materials can be expensive, especially with fluctuating oil prices and increasing import duties. By recycling your own waste plastic in-house using a waste plastic recycling machine, you can generate high-quality recycled pellets that can be reused in production.
Enhanced Profit Margins
With a reduction in input costs, businesses can significantly improve their profit margins. A plastic recycling machine allows manufacturers and recyclers to extract value from what was previously considered scrap. Instead of paying to dispose of plastic waste, companies can now recycle and resell it as reusable material. In industries where competition is high and margins are tight, this efficiency leads to better pricing flexibility and profitability.
Flexibility to Recycle Various Plastic Types
Modern plastic recycling machines are engineered to handle a wide range of plastic materials—like LDPE, HDPE, PET, PP, ABS, and PVC. This flexibility allows businesses to process different types of plastic scrap using a single machine setup. For example, if your factory deals with injection molding waste, blow-molded product waste, or packaging film waste, a versatile waste plastic recycling machine will ensure that none of it goes to waste.
Contribution to Circular Economy Goals
A circular economy is based on reusing, repairing, recycling, and reducing materials to extend their lifecycle and reduce environmental impact. Businesses that integrate plastic recycling into their operations are key contributors to this model. Using a plastic recycling machine helps close the loop by turning plastic waste back into raw materials, ready for reuse. This not only conserves resources but also creates a sustainable manufacturing process.
Types of Plastics That Can Be Processed by Waste Plastic Recycling Solution
Polyvinyl chloride (PVC)
Polyvinyl chloride is a thermoplastic used for producing pipes, wires, bottles, and clings films. This type of plastic is renewable.
Polyethylene terephthalate (PET)
Polyethylene terephthalate is another commonly used thermoplastic. It is thin and perfect for low-pressure manufacturing products. Materials like clothing fibers and soft drink bottles are recyclable products made from PET.
High-density polyethylene (HDPE)
High-density polyethylene is also a thermoplastic. However, it is softer and more flexible compared to PET and PVC. Examples of products made from HDPE are gallons and pipes, which are commonly recyclable.
Low-density polyethylene (LDPE)
Low-density polyethylene is the direct opposite of HDPE. It is generally used to manufacture plastic bags. However, this plastic material isn’t easily recyclable. So, instead of recycling, it can be cleaned and reused for other purposes.
Process Flow of Waste Plastic Recycling Solution
Crushing and Sorting
Waste plastics are first broken into pieces by the plastic recycling machine and then sorted. This is the first step in the recycling process, aimed at separating the various types of plastics that are mixed together, making subsequent processing easier. The current mechanical sorting technology is similar to the high-speed toll collection system on highways. As the waste plastics pass through the conveyor belt, they are quickly sorted by near-infrared optical identification, typically within one second, to distinguish different types of plastics.
Modification Processing
After being crushed and sorted by the plastic recycling machine, the waste plastics enter the modification stage. Since recycled plastics often suffer from material performance degradation, they need to undergo modification to enhance their quality. The most common method is blending, which involves mixing waste plastics with new plastic materials or other types of plastics. The mixture is then heated and melted, and finally blended and transported using a screw machine to form plastic pellets suitable for further processing.
Plastic Blending
Plastic blending is the process of heating different types of plastics to a molten state and mixing them. The key to this process lies in the design of the screw. Depending on the types of plastics and recycling requirements, the screw design will affect the mixing effect and final quality of the plastics. This is one of the specialized techniques in Taiwan's plastic processing industry.
Recycled Plastics
After modification, the recycled plastics can be further processed into regenerated plastics. These materials have properties similar to those of new plastics and can be used in the production of various plastic products. The modification formula will influence the characteristics, market value, and application fields of regenerated plastics. This not only reduces plastic waste but also provides manufacturers with high-value recycled materials, further promoting sustainable green development.
Packaging and Shipping
|
Packaging |
In wooden cases, wooden splints, wrap film and other specialized packaging film, to ensure that the machine impact damage in the long time of land and sea transport, thus reaching the customer factory intact. |
|
Shipping |
Shipping by sea, by air, by express are acceptable. According to your requirements. |
Our Factory
Asia's largest and fastest growing professional plastic machinery equipment manufacturer , Jwell Machinery Co., LTD., founded in 1997. until now, Jwell factory covers more than 700,000 square meters and has 8 production bases and 26 professional extrusion companies in the world. They are located in Shanghai, Zhejiang provinces, Jiangsu provinces, Guangdong Province and Thailand.
Certificate
FAQ
As one of the most professional waste plastic recycling solution manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy waste plastic recycling solution made in China here from our factory. Contact us for quotation.
